FINkens

Robot Generations

FINken-III

FINken-III is the newest genration of our copters with more power, better communication and more sensors.

Specifications:

  • Optical flow sensor with sonar ranging towards ground
  • (Optional: Infrared distance sensor towards ground)
  • Tower of 4  sonar ranging sensor
  • 802.15.4 based phase-difference ranging between copters and anchors
  • PaparazziUAV board (Lisa/M 2.1) - with floating point support
  • 802.15.4 Communication Modul to communicate to ground station and between copters

FINken-III

FINken-II

FINken-II is the second version of our flying robots which are smaller than an A4 paper.

Specifications:

  • Optical flow sensor with sonar ranging towards ground
  • (Infrared distance sensor towards ground)
  • 5 Sonar ranging sensors
  • PaparazziUAV board (Lia 1.1)
  • Bluetooth Low Energy communication module

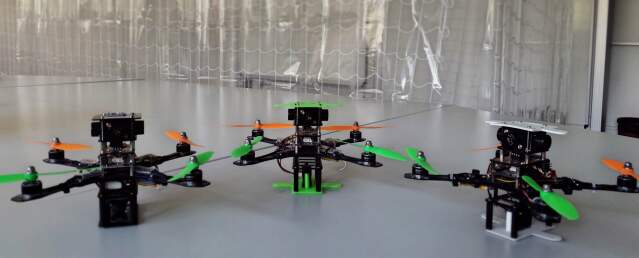

FinkenIIx3

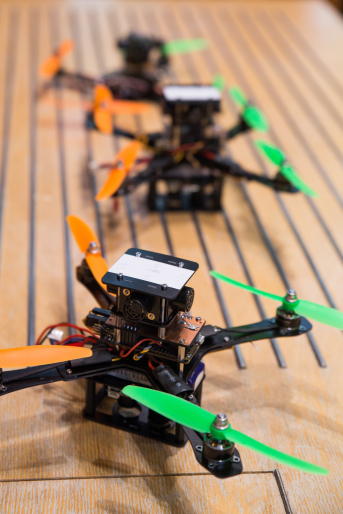

FINkens

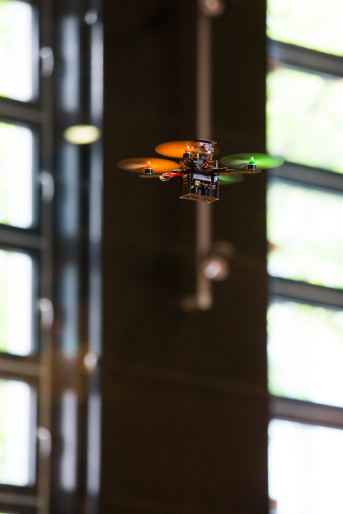

 FINken

FINken-I

Specifications:

  • 4 Ultra-sound sensors
  • PaparazziUAV board (Lia 1.0)
  • Bluetooth Low Energy communication module

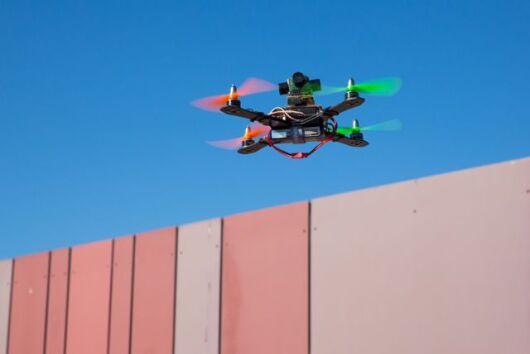

FINken-I-1

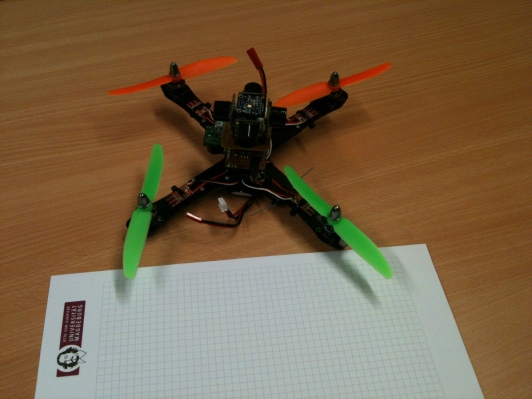

FINken-I-1
